产品介绍

雾淋室除了具备普通风淋室的空气吹淋的功能,还增加了水雾吹淋功能。在生物制药工业中,生产高活性和毒性药物成分车间的 工作人员在使用这些具有活性的粉末时通常会穿密闭防护服,工作人员在接触粉末的过程中,会有微量的粉尘粘附于工作服上, 工作人员在从受控区到非受控区脱掉工作服时,会将工作服上的粉尘散落到非受控区造成环境污染或被吸入到体内造成人身危 害,为清除这些高活性的粉尘从受控区流入到非受控区造成环境的污染及人员的伤害,工作人员退出受控区时需要进入雾淋室将 有害粉尘清除并收集。


Fog shower in addition to the ordinary air shower room air blowing drench function, but also increased the water mist drench function. In biopharmaceutical industry, the production of highly active and toxic ingredient workshop staff when using these reactive powder usually wear airtight

protective clothing, the staff in the process of contact powder, there will be a trace of dust adhesion on the overalls, staff in a controlled area to the controlled area off his uniform, work clothes on the dust will be scattered to the controlled area environmental pollution or inhaled into the body causing bodily harm, to remove these highly reactive dust from the controlled area into uncontrolled area cause harm to the environment pollution and personnel, When the workers exit the controlled area, they need to go into the mist shower to remove and collect the harmful dust.

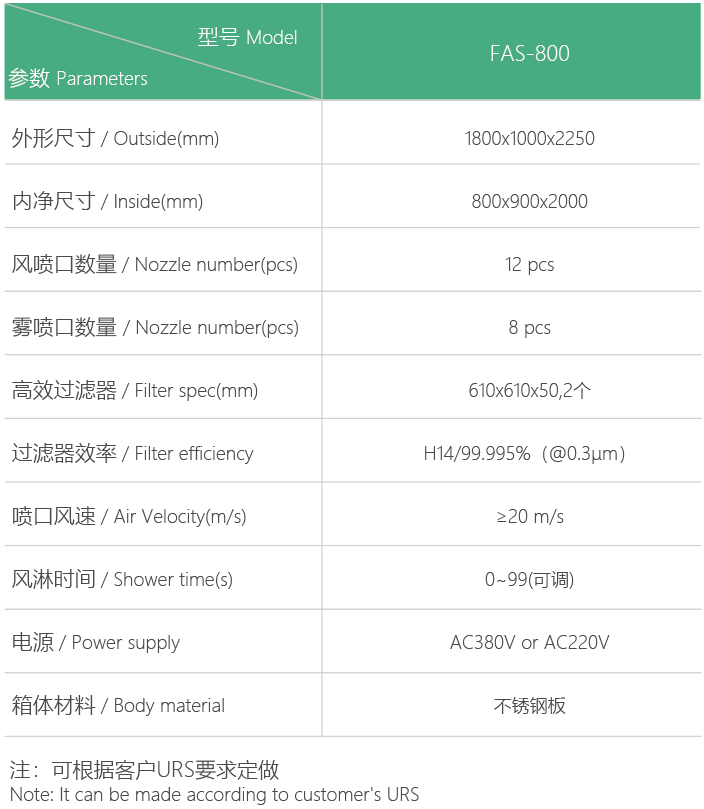

技术参数
产品特征

01

箱体采用不锈钢板折弯焊接而成,易清洁,无卫生死角。

The box is made of stainless steel plate bending and welding, easy to clean, no health corner.


02

PLC控制系统,雾淋模式,吹淋模式,无人模式,排消模式可自由切换并可自动运行。

PLC control system, fog mode, spray mode, unmanned mode, elimination mode can be switched freely and can run automatically.


03

各模式自动运行时,双门电子互锁,且双门不能打开。

When each mode runs automatically, the double-door electronic interlock, and the double-door cannot be opened.


04

配置可以旋转的嵌入式不锈钢喷嘴和雾淋喷头,增加了空间利用率和吹淋效果。

The configuration can rotate embedded stainless steel nozzle and spray nozzle, increase the space utilization rate and spray

effect.


05

可实时显示风淋和雾淋时间,雾淋和吹淋时间均可调。

It can display the time of air shower and fog shower in real time, the time of fog shower and blowing can be adjusted.


06

箱体采用模块化设计,可以按实际需要拼装成各种长度的雾淋室。

The box is modular design, can be assembled into a variety of length of the fog room according to the actual needs.
